What are diamond tools？

Diamond tools are tools which use diamond particles or powder as the main element. These tools include: cutting, grinding, drilling, milling, and polishing.

Broadly speaking, diamond grinding paste, rolling saw blade, cold diamond-impregnated wire drawing die, cold diamond-impregnated tools, brazed diamond composite blade tools, etc., also belong to diamond tools.

Diamond is hard, so the tools made of diamond are particularly suitable for processing hard and brittle materials, especially non-metallic materials, such as stone, wall and floor tiles, glass, ceramics, concrete, refractory materials, magnetic materials, semiconductors, gems, etc. It can also be used for processing non-ferrous metals, alloys, wood, such as copper, aluminum, hard alloy, composite wear-resistant wood boards, etc. At present, diamond tools have been widely used in construction, building materials, petroleum, geology, metallurgy, machinery, electronics, ceramics, wood, automobile and other industries.

According to their different uses, diamond tools are mainly divided into: diamond grinding tools, diamond sawing tools, diamond polishing tools, diamond drilling tools and other categories.

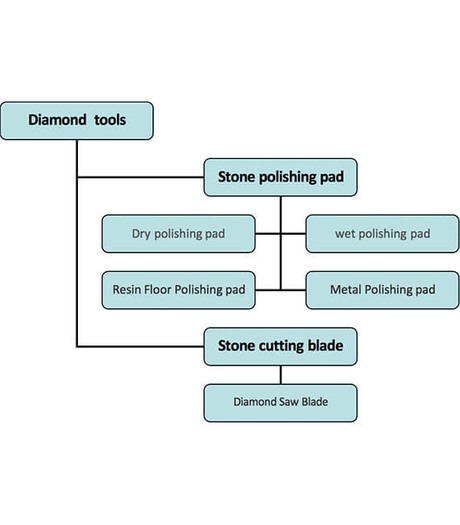

What are the types of diamond tools？

Stone cutting blade

Our diamond saw blade series can be used with power machinery acted as good helper for cutting concrete, granite and marble.

Product description:
1-Widely used for cutting and nondestructive grooving on marble, ceramic tile, concrete on manual cutting machine.
2-Suitable for dry or wet cutting.

Cutting blade

Mixing (copper cobalt nickel iron tin + diamond powder + liquid humidifying agent) (4-5 hours)——packing——Sintering (heating and pressing) or welding in furnace —— cooling, strength and toughness test——polishing——- spray paint ——edge——varnish—— laser printing (screen printing) ——packaging

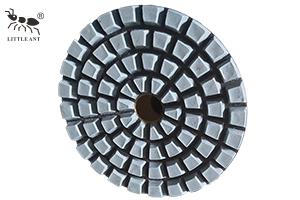

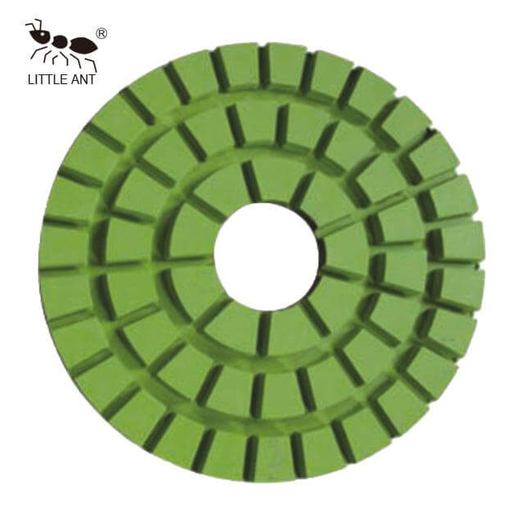

Polishing pad

Ingredients (diamond abrasive powder) and other resin—— mixing dry material—— mixing wet material ——  packing to grinding tool to grind flat——hand shaking, and roast——  the first time the gluing ——  the second glue, paste the rough——cut ——twice baking ——trimming punch—— print size, trademark——packaging

The so-called particle size (mesh number), refers to the particle size or fineness of the material, the general definition refers to the number of mesh in 1 inch *1 inch area, that is, the number of mesh, the material can be defined as how many mesh number through the mesh: such as 200 mesh, is the material can be through 1 inch *1 inch with 200 mesh. And so on, the larger the mesh, the finer the particle size of the material, the smaller the mesh, the larger the particle size of the material.

Each particle size corresponds to the color of the wool surface is fixed, the color of the working surface is fixed, and the same is true of the dry grinding disc.

Stone processing order:  drilling – cutting – grinding – polishing

We provide high-quality

diamond tools to the world

Founded in 2003 specializing in the field of diamond tools, one of the biggest manufactures in China.  The company has an area of modern standard factory, workshop, office building and warehouse center, now the total area is over 90,000 square meters. We have over 500 experienced employees, engaged in research, development, production, sales and after-sales service. Nowadays, Little Ant is becoming one of the biggest manufacturers for stone processing, providing products for polishing, cutting, grinding and drilling.
