LITTLE ANT
GS-*-*

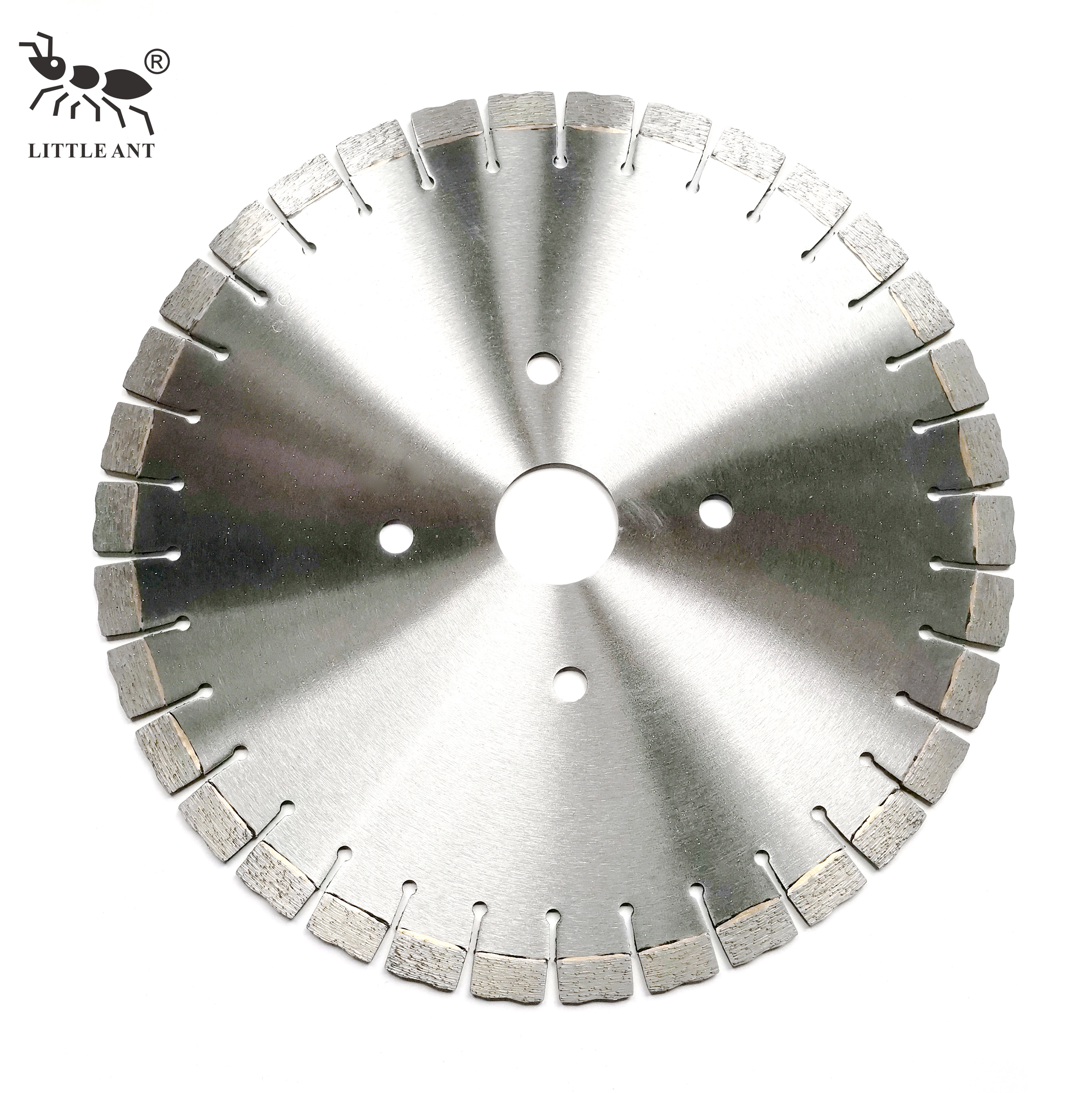

Diamond Granite blade
Model: GS-350 GS-400 GS-450 GS-500 GS-600 GS-800
Diameter: 350mm(14"),400mm(16"),450mm(18"),500mm(20"),600mm(24"),800mm(32")
Segment: 10mm(H)x3.2mm(T)
Arbor: 50mm
Cutting: Granite
Speed: 4,500 RPM Max.
Use type: dry or wet
Used with: circular saws
Segmented Diamond Wet Saw Blades are a great balance of price and performance.
Advantages:
Slanted segmented gullets clear the cutting path to provide faster, cleaner, cooler cuts
High diamond concentration & quality for extended life
Quad holes allow for inside corner cuts, clean up and notching
Designed for efficient, straight cuts on granite
Product description:
The Segmented Diamond Saw Blades are designed to wet and dry cutting only for granite.
While these blades can offer a relatively smooth cut with a fast cutting speed, chipping may still occur. They are durable and have a long blade life compared to other blades.
The gullets are there to improve air flow, dissipate heat, and remove slurry from the cut, helping to maintain the blade’s cutting performance.
Common Specifications
| Model No. | Size(mm) | Bore(mm) | Cut | Use type | Segments | Max RPM |
|---|---|---|---|---|---|---|
| GS-350-10 | D350*H10*T3.2 | 50/60 | granite | wet/dry | 24 | 4,500 |
| GS-350-12 | D350*H12*T3.2 | 50/60 | granite | wet/dry | 24 | 4,500 |
| GS-350-15 | D350*H15*T3.4 | 50/60 | granite | wet/dry | 24/34 | 4,500 |
| GS-400-10 | D400*H10*T3.6 | 50/60 | granite | wet/dry | 28 | 3,800 |
| GS-400-12 | D400*H12*T3.6 | 50/60 | granite | wet/dry | 28 | 3,800 |
